Filter Paper Tea Bag Packaging Machine with String&Tag

Filter Paper Tea Bag Packaging Machine with String&Tag



Application

This filter paper tea bag packaging machine is suitable for packing tea, medical tea, healthy tea, and other small granule teas, it can help to pack inner bag package/ inner&outer bag package/ inner&outer bag package with tag&line, based on your exact requirement.

Features

1.Adopt PID heat controller, so heat sealing can be controlled very accurately.
2.Adopt PLC control system, and also display screen, easy to operate.
3.All parts connecting packing material is stainless steel 304, keep the packing material clean and sanitary.
4.Some cylinders adopt the imported ones, guarantee the working performance and stability.











































Machine parameters

Packing weight	3 – 10 g
Bag size	Length: 50-70mm Width: 45-80mm (Inner bag) Length: 80-120mm Width: 75-95mm(Outer bag)
Packing speed	30-40bags/min
Machine dimension	1750*740*1950mm(L*W*H)
Machine weight	500kg
Voltage	220V,50Hz
Power	3.7KW
Air source	≥0.4m³/min

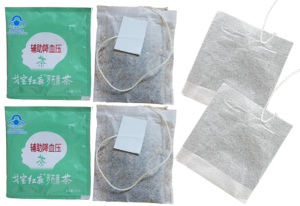

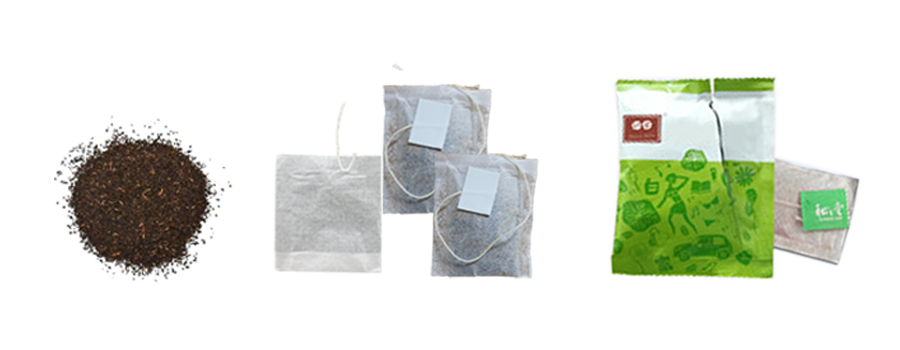

Sample bags





























Machine video
