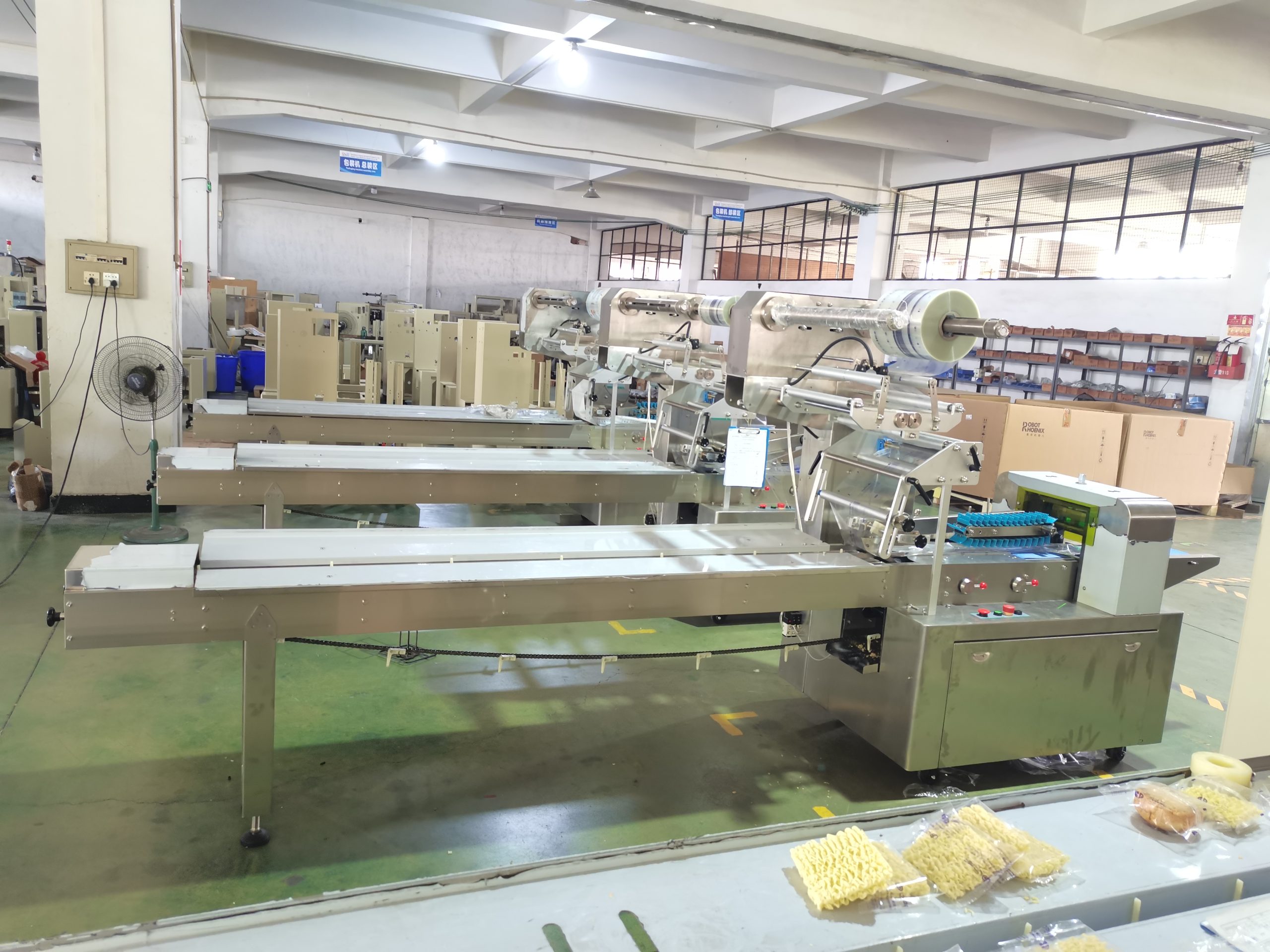

Automatic Pillow Bag Soap Packaging Machine
طلب
The Flow Pack Machine is suitable for packing regular objects, such as biscuits, candy, moon-cake, hotel knife/fork, bread, dessert, instant noodle, industrial parts, box, trays, إلخ.
Working process: manual feeding/automatic bag forming/sealing/cutting/date printer, can add nitrogen inside through package based on requirements.
Soap Packaging Machine
سمات
1. Double transducer control, flexible bag length cutting, operator needn’t to adjust the unloading working, saving time and saving films.
2. human-machine operation, convenient and quick parameter setting.
3. Self diagnosis failure function, clear failure display.
4. High sensitivity optical electric color mark tracking , digital input cut position which makes the sealing and cutting more accurate.
5. Separate PID control to temperature, suitable for various packing materials.
6. Stopping the machine in selected position, no sticking to the knife and no waste packing film.
7. Simple driving system, reliable working, convenient maintenance.
8. .All the controls are achieved by software, convenient for function adjusting and upgrading.
المعايير الفنية
| Film Width | Max.250mm |
| Bag Length | 90-220مم |
| Bag Width | 30-110مم |
| Products height | Max.55mm |
| Film Roll diameter | Max.320mm |
| Packing speed | 40-230bag/min |
| Powder | 220V，50/60Hz，2.4KW |
| Machine size | (L)3770×(W)670×(ح)1450مم |
| Frame Material | Carbon steel/SS304 |
| weight | 500كلغ |
| Note | Can add nitrogen device and date printer based on requirements. |
flow packing machine
Bag type
Back sealed bag waving cutting/flat cutting
فيديو الآلة
Application of Horizontal Pillow Bag Flow Packing Machine
The horizontal pillow packaging machine is mainly used for packaging bulk items. It can also package scattered items by attaching them to trays or bundles. Therefore, it is widely used in industries such as food, cosmetics, sanitary products, medicines, daily necessities and small industrial supporting components.
What kind of packaging material is used for flow packing machines?
The flow pack machines uses thermoplastic film (such as paper/PE, OPP/PE, PET/AL/PE, and other laminated and monolayer films) to wrap and seal items. It automatically completes the processes of supplying items and packaging materials, wrapping, sealing, cutting, and discharging finished products. Because it operates continuously, it can achieve high packaging speeds.
Flow packing machine application
